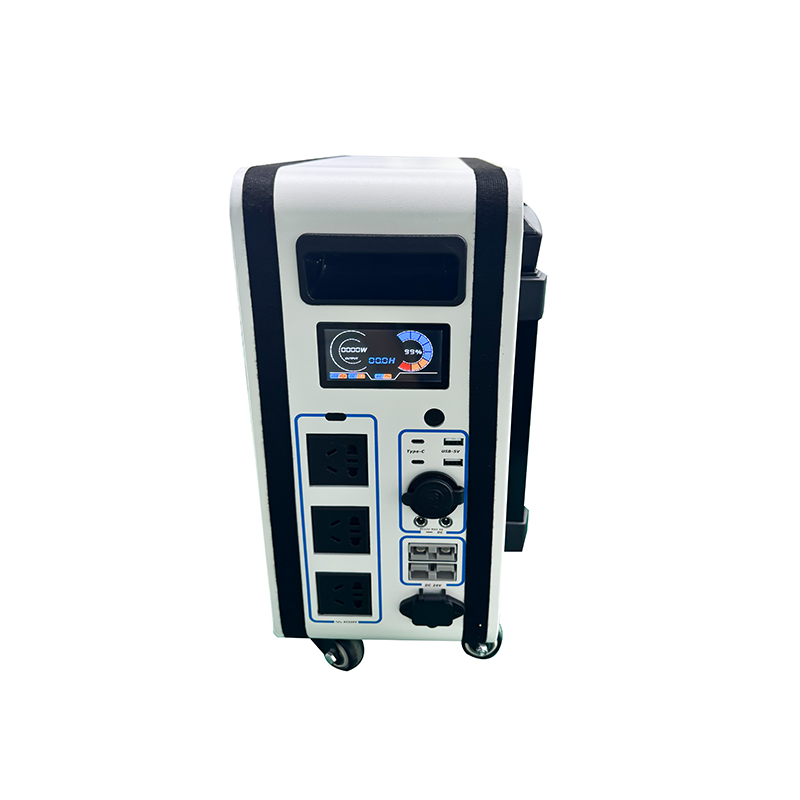

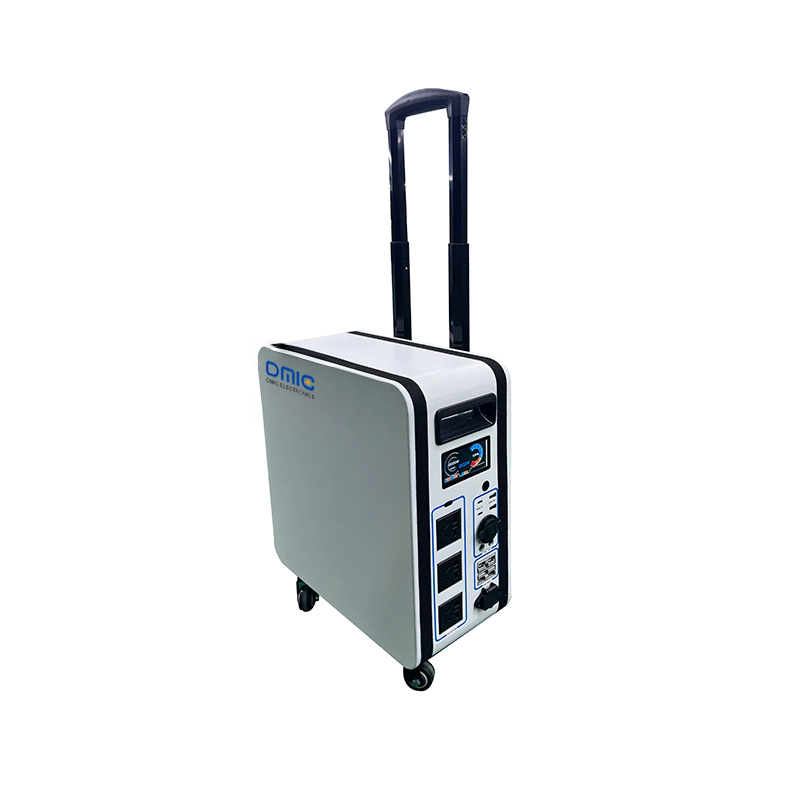

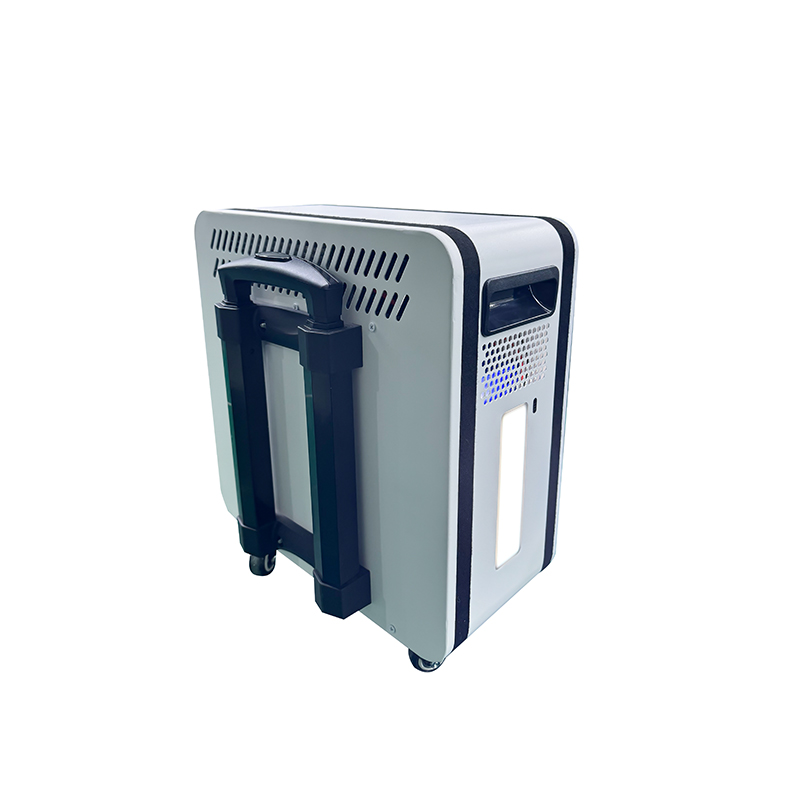

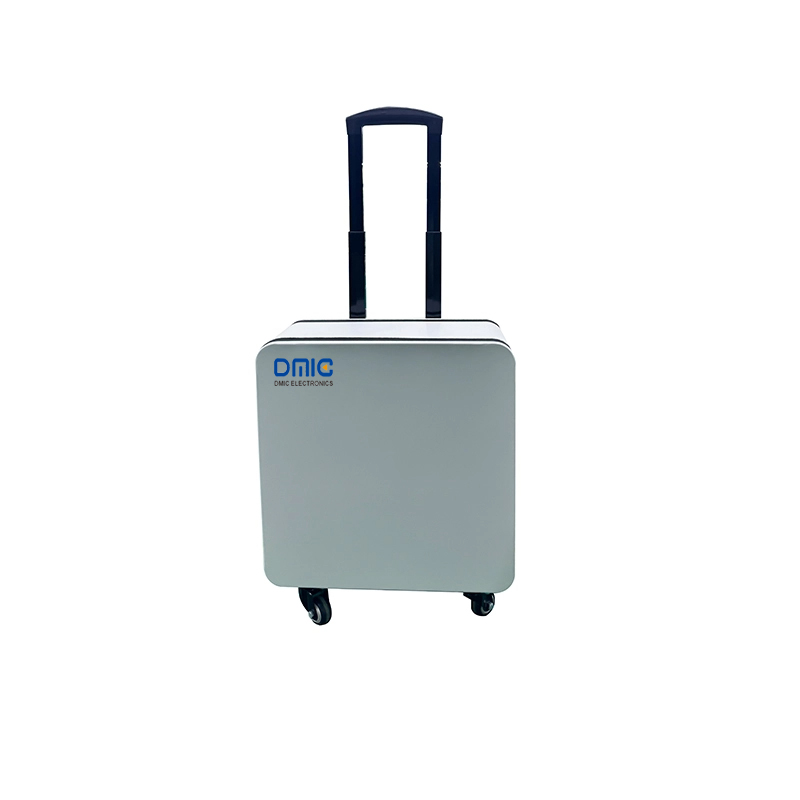

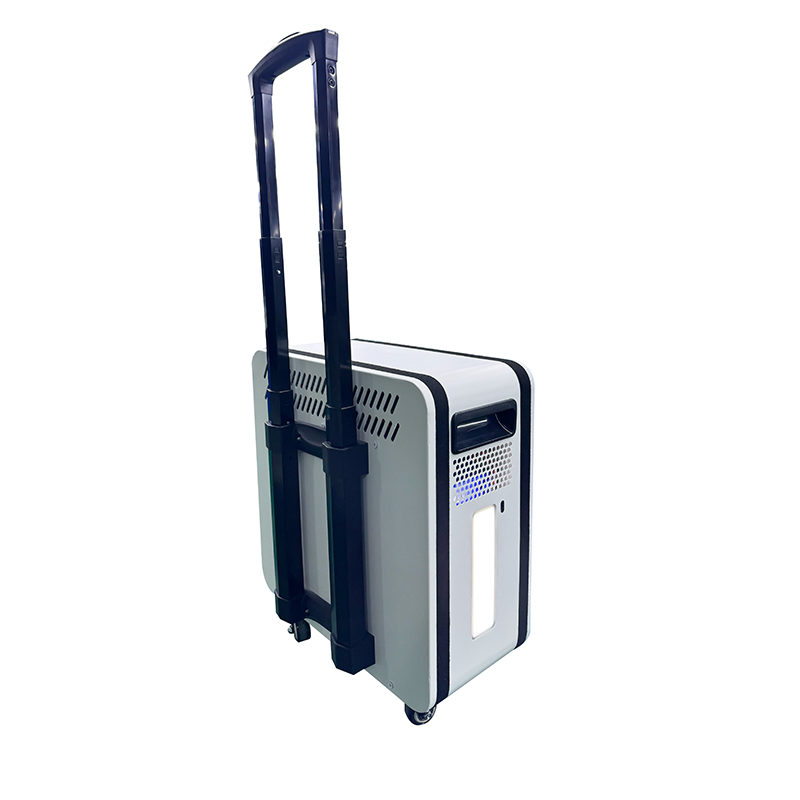

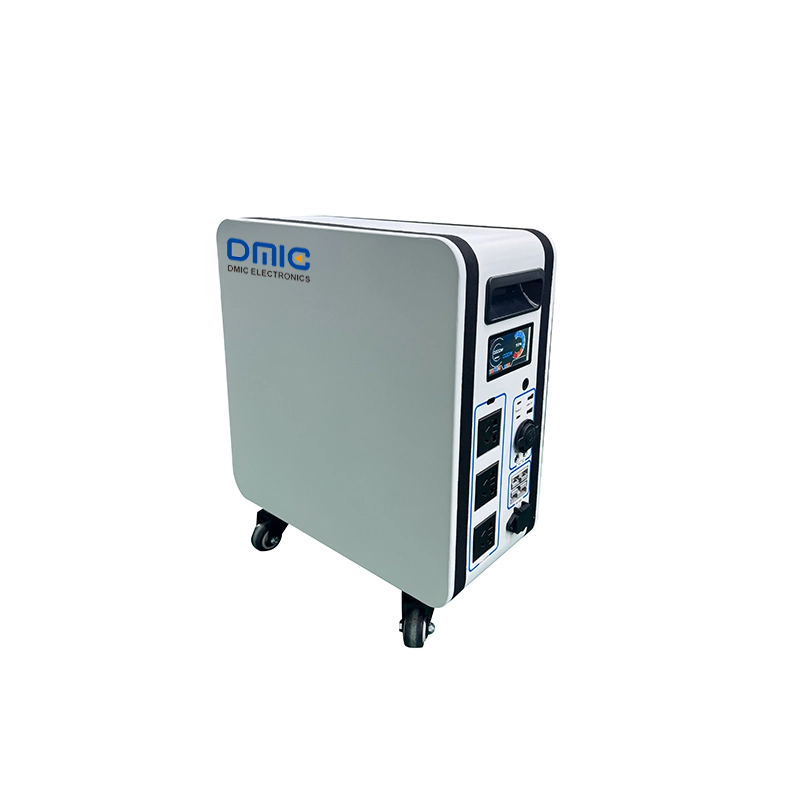

2000w Drawbar Case Portable Outdoor Power Supply Set
One-stop outdoor power supply solution: This product provides a comprehensive one-stop power supply system solution, simplifying the installation process and reducing installation troubles.
Excellent performance:
New Class A lithium iron phosphate battery cell, bbb50 5000 cycle life, can support up to 32 parallel, with 16S 300A BMS, large capacity is safer
Uninterruptible power supply for outdoor equipment, electric vehicles, solar energy storage systems, and communication base stations for a variety of industries and applications. Whether you are engaged in the new energy industry or heavy industry, our lithium iron phosphate batteries can meet your needs.
Main specifications | ||||
| NO. | Test project | parameter | note | |
1 | inverse | Input voltage range | 20-29.6Vac | |
| 2 | Rated output power | 2000W | ||
| 3 | Peak output power | 1 to 1.25 times: 60s 1.25 to 1.5 times: 30s 1.5~1.7 times: 2s 1.7-2 times: 0.2s | ||
| 4 | Output power accuracy | ±5% | ||
| 5 | Output voltage | 110V/220Vac/230Vac | Can be Selected | |
| 6 | Output voltage accuracy | ±5% | ||
| 7 | Output frequency | 50Hz、60Hz | Can be Selected | |
| 8 | Output waveform | Pure sine wave | ||
| 9 | effectiveness | 90% | PCBA@50% efficiency Of rated output power | |
| 10 | Short circuit protection | When the output is short circuit,AC output will be shut off.After the short circuit is removed,press the button to start the machine and resume Normal output. | ||
| 11 | Load adaptability | Pure sine wave voltage and current output,suitable for a variety of loads,100% rated resistive load (incandescent lamp,etc.),65%rated capacitive load (adapter,energy-saving lamp,LED lamp,etc.),60%rated inductive load(fan,etc.). | ||
| 12 | Ac frequency | 47-63Hz | ||
| 13 | Charge management | BMS | ||
| 14 | Altitude | ≤2000m | ||
| 15 | Atmospheric pressure | 79kPa～106kPa | ||
| 16 | Cooling method | Compulsory air cooling,fan inside the power supply,installation must pay attention to the power supply inlet and outlet unblocked | ||
| 17 | Insulation strength | Ac terminal to housing:1500Vac/50Hz or 2200VDC60s, no breakdown, no flaring phenomenon,Steady-state leakage current is less than 1mA; Ac terminal to DC terminal:3000Vac/50Hz or 4240Vdc60S, no breakdown, no flare phenomenon,Steady-state leakage current is less than 1mA; Dc terminal to housing:500Vac/50Hz or 710Vdc60S, no breakdown, no flaring phenomenon,Steady-state leakage current is less than 1mA;Ac terminal to CAN or 485 terminal: 3000Vac/50Hz or 4240Vdc60S, no breakdown, no flaring phenomenon,Steady-state leakage current is less than 1mA;Dc terminal to CAN or 485 terminal:500Vac/50Hz or 710Vdc60S, no breakdown, no flaring phenomenon,Steady-state leakage current is less than 1mA;Housing to CAN or 485 terminals:500Vac/50Hz or 710Vdc60S, no breakdown, no flaring phenomenon,The steady leakage current is less than 1mA； | No flaring, no breakdown, stable The state leakage current is less than 1mA | |
| 18 | AC bypass switching | AC bypass current: Max.10A; Switching time Max.15ms | UPS | |
3.Our Advantages:
∗At our company, we take pride in our ability to seamlessly integrate the research, development, production, and sales of various high-current connectors and accessories for new energy applications.
∗Offering unparalleled OEM cable harness customization and full-service connector and wire harness solutions, our team delivers a comprehensive approach to meeting your needs.
∗From start to finish, our goal is to provide exceptional quality and service, ensuring the success of your project. Trust us to be your all-in-one partner for cutting-edge new energy interconnectivity.
4.Packages & Shipping:
Our products are packaged to international standards, ensuring that your order arrives in immaculate condition. We are based in Guangdong, China, and dispatch all orders from this location. With our commitment to professional and efficient service, you can trust us to deliver your goods with utmost care and attention to detail.
5.FAQ:
Q: What services does your company offer for high-current connectors and cabling solutions?
A: Our company specializes in providing professional development, design, and integrated cabling solutions for high-current connectors ranging from 5A to 350A. We also offer production and sales of a wide range of high-current connectors, plugs, and UPS/EPS power sockets to support various industries, including automotive, electric vehicles, communication power, medical equipment, power distribution equipment, material handling equipment, solar energy, and new energy.
Our company boasts its own production and R&D base, and has obtained ISO9001 quality system certification. All of our products meet CE, 3C, and other certifications, as well as RoSH and REACH environmental protection requirements. With our commitment to quality and excellence, we offer reliable and efficient solutions to support our clients' businesses.
